Dia.1800mm-2800mm



No.

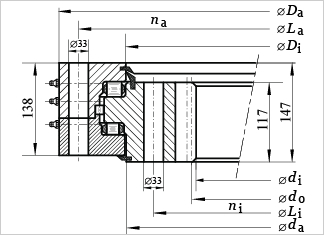

Dimension

Fixing holes

Gear teeth

Tooth force

Basic load ratings

Weight

Static

Dynamic

Da

Di

di

da

La

Li

na

ni

do

m

z

Fz norm

Fz max

Cor

Coa

Cr

Ca

mm

mm

mm

mm

mm

mm

-

-

mm

mm

-

kN

kN

kN

kN

kN

kN

kg

134.25.1800 G3

1981

1763

1520

1774

1915

1675

36

36

1536

16

96

185

342

1424

10333

751

2110

1101

134.25.2000 G3

2181

1963

1728

1974

2115

1875

44

44

1744

16

109

185

342

1577

11480

793

2234

1202

134.25.2240 G3

2421

2203

1944

2214

2355

2115

48

48

1962

18

109

217

394

1763

12856

832

2371

1406

134.25.2500 G3

2681

2463

2214

2474

2615

2375

54

54

2232

18

124

217

394

1963

14346

889

2510

1545

134.25.2800 G3

2981

2763

2500

2774

2915

2675

60

60

2520

20

126

248

449

2194

16067

943

2666

1767



Equivalences
32-25 1800/2-06850
192.25.1800.990.41.1502
32-25 2000/2-06860
192.25.2000.990.41.1502
32-25 2240/2-06870
192.25.2240.990.41.1502
32-25 2500/2-06880
192.25.2500.990.41.1502
32-25 2800/2-06890
192.25.2800.990.41.1502
