Trailer turntables


Category:Trailer turntables

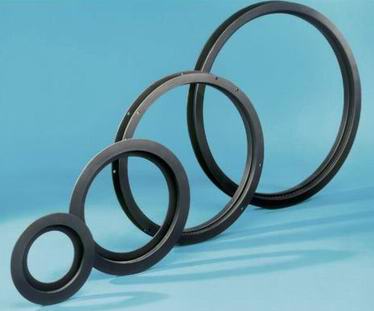

Turntables are part for fitting onto trailers and agricultural vehichles to connect the A-frame to the trailer chassis so it can swivel.Their purpose is to transmit both the axial load, thrust and traction forces. None of their parts is susceptible to wear. Each turntable consists of two steel rings designed for flange mounting. The raceways are machined so as to ensure that the load transmission is favourable directed between the antifriction bearing steel balls
that are fitted. An initial filling of grease protects the raceway system.

Evon supply included:

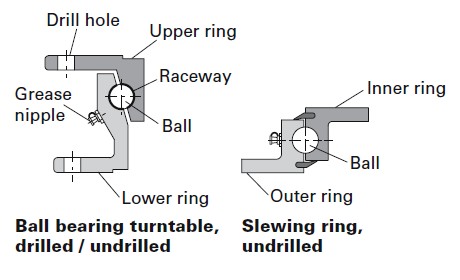

•Standard/ Low-maintenance
•Drilled/ Undrilled
•Primed

The turntables are supplied as either undrillled or drilled bearings with the standard type being filled with lithium-saponified grease and the low-maintenance type. Every turntable is coated with a primer and can therefore be painted at the same time as the trailer. The primer is based on a synthetic resin compound.

Details you can download our catalogue for turntalbe from E-Catalogue.
