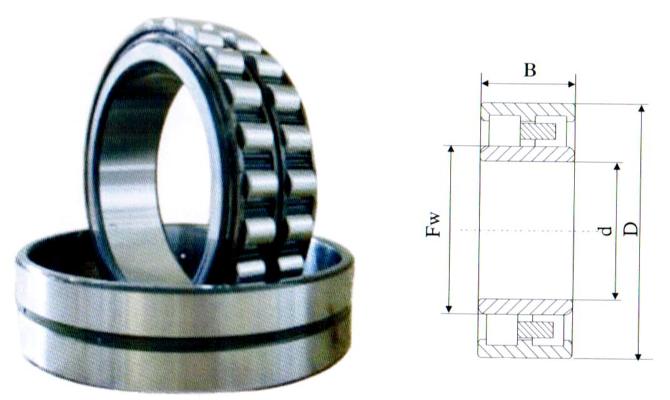

Double-row cylindrical roller bearings


Category：Bearings



Dimensions (mm) Basic load rating (KN) Speed ratings (rpm) Weight (kg) Number
d D B Dynamic Staitc Grease Oil
240 360 92 870 1650 1050 1500 33 NN3048K
260 400 104 1040 1950 950 1300 47 NN3052K
400 104 1040 1950 950 1300 49 NN3052K
280 420 106 1100 2100 850 1100 49 NN3056K
420 106 1100 2100 850 1100 50 NN3056K
300 460 118 1270 2430 800 1000 71 NN3060
460 118 1270 2430 800 1000 70 NN3060K
320 480 121 1350 2650 750 950 75 NN3064K
340 520 133 1680 3260 700 900 104 NN3068K
360 540 134 1760 3500 670 850 106 NN3072
380 560 135 1720 3500 630 800 110 NN3076K
560 135 1720 3500 630 800 114 NN3076K
620 194 2910 6260 500 700 221 NN3176V
400 540 108 1340 2590 780 980 71 NN3980K
600 148 2140 3950 700 880 143 NN3080K
600 148 2140 3950 700 880 147 NN3080K
460 680 168 2670 5470 450 560 204 NN3092
560 750 140 2560 5250 470 590 188 NN39/560
780 180 2590 6910 450 560 266 NN6/560
820 195 2660 7080 340 430 341 NN30/560K
670 980 280 4990 10100 200 300 597 NN30/670K
